AAG CloudWatcher – Hydreon rain sensor version

$365,00$480,00

AAG CloudWatcher cloud detector, high accuracy, low-cost system! Adapted to Hydreon RG-9 Rain sensor.

Comparison between the Capacitive sensor and the Hydreon sensor

Clear

Estimated shipping time: 15 days

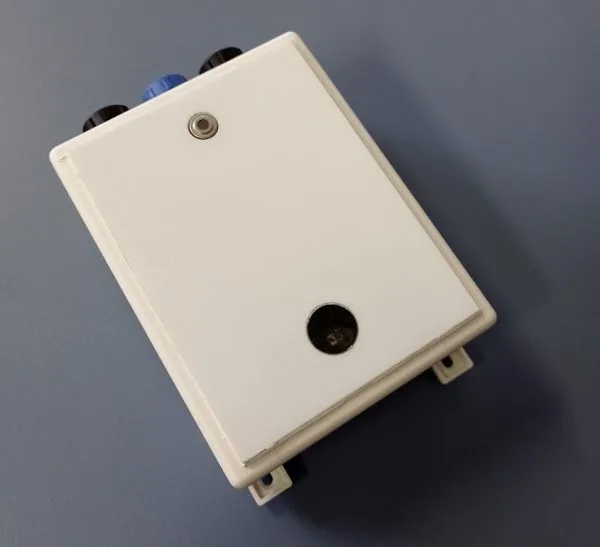

This AAG CloudWatcher is a special version adapted to work with the Hydreon RG-9 Rain sensor (which is sold separately).

(no other rain sensor installed – for rain information, the RG-9 is needed).

CloudWatcher, watching the sky since 2008.

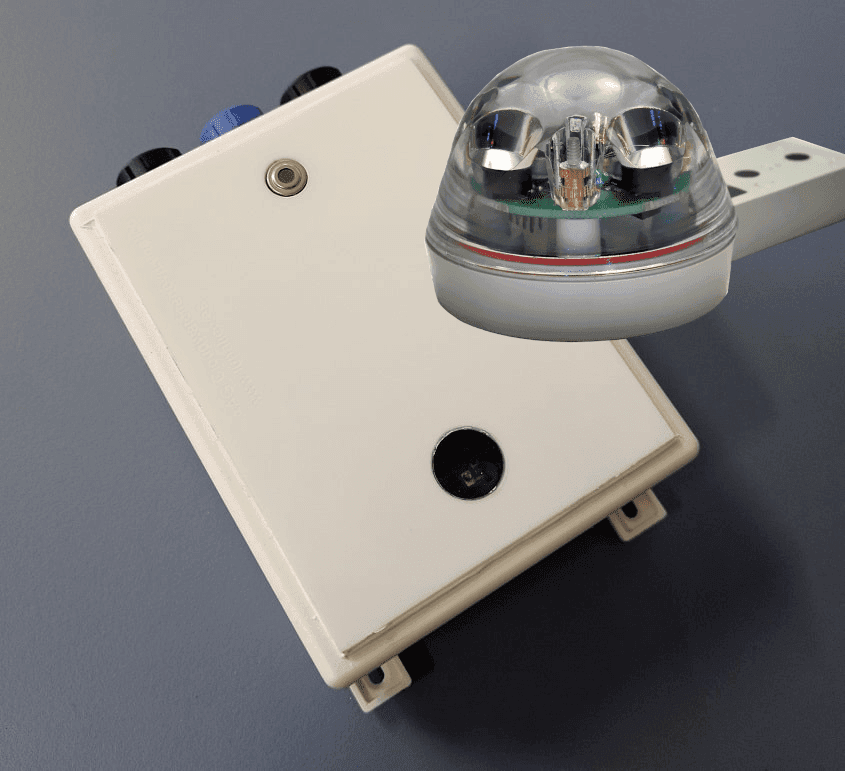

CloudWatcher with anemometer and Hydreon rain sensor setup.

AAG CloudWatcher advantages:

(*) Find here the pice list of the REPAIRS AND SPARE PARTS for the AAG CloudWatcher.

The AAG CloudWatcher includes:

  • custom box with a special exterior finish that includes:
        • Clouds sensor
        • Connection to Hydreon Rain sensor (sold separately)
        • Light sensor
        • Temperature sensor
        • Relative Humidity, Atmospheric pressure sensor and Temperature sensor (RH & AP version) – New 2021 Apr!
        • Anemometer (optional external accessory)
  • Long weather-proof cable (several lengths) with IP68 connector
  • Relay for observatory opening/closing

Let’s see them in detail:

► The AAG CloudWatcher box. All the data collected by the AAG sensors and the anemometer are reflected in the computer through their corresponding graphics. These allow a comprehensive and easily understandable measurement of atmospheric conditions:

Clouds sensor

Through an infrared sensor of the AAG CloudWatcher measures the temperature of the sky, and an electronic thermometer measures the internal temperature. Both data are then related by a powerful formula used to determine the existence of clouds. The measuring result is easily read on the graphic “Cloud”.

Unlike other detectors, the AAG CloudWatcher allows the user to set the parameters for measurement, and thus adjust the detection of clouds for each place.

Rain sensor (requires the Hydreon Rain sensor, sold separately)

Connected to HRG-9 Hydreon Rain sensor, the CloudWatcher rain graph will display 3 different levels for:

  • dry,
  • rain, and
  • failure (disconnection).
Light sensor


To distinguish between day and night. It can even detect the Moon.

Temperature sensor


Responsible for measuring the ambient temperature.

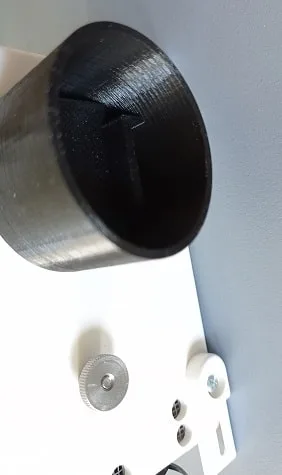

Relative Humidity, Atmospheric pressure sensor and Temperature sensor (RH & AP version)

The data from this sensor are supported by the SOLO CW (attached image).

If you want to take a look at our SOLO installed in Torrelodones, Madrid, Spain, click here: http://aagsolo.lunatico.es:10800/

Windows program displays the value in the screen, with the dew point, and the data are included in the “Single line data” file (*).

Anemometer (OPTIONAL)

Shows the wind speed.





►The AAG cable connects the CloudWatcher instrument to a PC and it is available in 4 lengths: 3, 5, 7, or 10m. (From 2018/November you also can get the AAG CloudWatcher without cable).

It has a special weather-proof connector, IP68, which allows the easy and comfortable installation of the unit. The cable can be routed conveniently through a conduit, the thicker part of it is only 19mm in diameter.

IP68 Weipu connectors for power cable and anemometer
IP68 Weipu connectors for power cable and anemometer



Relay (1) for observatory opening/closing, can withstand a voltage of 220 V. But not being a security cable it is advised to connect it to low voltage devices (12 or 24V).


Technical specifications:

  • Power 12 or 15V, current < 1 A
  • Standard 5.5 / 2.1mm jack, centre positive
  • RS232 Serial port (**)
  • Size: 110*85*37 mm.

(**) USB to RS232 adapter available here.

In addition, the AAG CloudWatcher software incorporates advanced features such as:

  • Multiple users in LAN (MASTER mode and REMOTE mode operation);
  • MASTER and REMOTE installations can be independently parameterized;
  • Sky temperature correction model to account for excessive atmospheric longwave radiation during summer;
  • All alerts can be defined as sound alerts, with a specific sound file to be played when the alert condition occurs;
  • Switch control can be disabled and be performed by an external program (suitable to control other equipment);
  • Allows the electrical constants to be changed by the user;
  • A complete set of properties/methods for inter-program communications;
  • Compatible with existing firmware versions 1.xx, 2.xx and future version 3.xx;
  • ACP, Sequence Generator+, CCDCommander, CCDAutopilot, Prism, CCDAutoPilot, and Maxpilote compatible; plus any ASCOM-compliant software.
  • With the program, AAG WeatherCentre (***) can combine information from any standard weather station supported by Virtual Weather Station, Weather Display, or Cumulus software.
  • Several free programs for mobile devices, for example, the one developed by Francisco Jesús Cortés to allow you to receive an alarm on your mobile phone.

(***) The program AAG WeatherCentre is no longer needed since 2017 because the AAGCloudWatcher measures wind speed and relative humidity. It is fully operational but not being updated – offered “as is”.

AAG CloudWatcher con anemómetro montado








AAG CloudWatcher documentation:




Cable length

10m. cable, 3m. cable, 5m. cable, 7m. cable, Without cable

Relative humidity and Atmospheric pressure sensor

With RH & AP sensor, Without RH & AP sensor
